GT5533 - 752052-0009 Journal Bearing Turbos

GT55 752052-0009 turbine mapGT5533 turbo

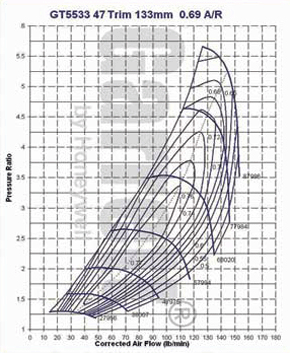

GT55 752052-0009 compressor map

Horsepower 1000 HP - 1550 HP
Displacement 3.0 L - 12.0 L

  • Journal bearing CHRA.
  • Oil cooled bearign system.
  • Turbine wheel is cast from "Inconel" materila for extreme aplication.
  • Ported shroud compressor housing to increase surge resistance.
  • Turbine housing option available.

Turbo Dimensions (1.94 Mb)

GT5533 COMPRESSOR TURBINE
Turbo CHRA Inducer Exducer Trim A/R Wh Dia Trim A/R Type
752052-0009 449530-0049 91.2 mm 133.0 mm 47 0.69 111.4 mm 84 - -
TURBINE HOUSING OPTIONS
Part Number A/R Type
761208-0013 0.90 Free Float
761208-0014 1.00 Free Float
761208-0015 1.12 Free Float
761208-0015 1.24 Free Float
761208-0016 1.40 Free Float

ACCESORIES

COMPRESSOR HOUSING

Inlet
Part Number Description
not available Coupler 6"
not available T-bolt band
Outlet
Part Number Description
510350-003x Coupler 3.5"
590375-0350 T-bolt band

TURBINE HOUSING

Inlet
Part Number Description
409038-0001 Gasket
not available Flange
Outlet
Part Number Description
446397-0515 V clamp 5.15"
219015 Flange

BEARING HOUSING

Inlet
Part Number Description
210019 Gasket
Outlet
Part Number Description
210060 Gasket


Updated on July 04, 2011
