Turbo   Racing


GTP38R - 739619-0004 Turbo Kits

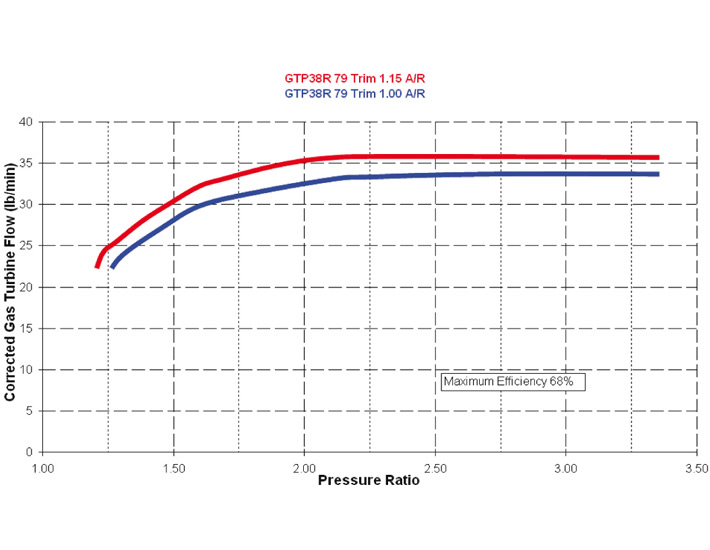

GTP38 739619-0004 turbine mapGTP38R turbo
GTP38 739619-0004 compressor map

Horsepower 290 HP @ 3000 rpm
Torque 745 N·m @ 400 rpm

  • F250, F350 & Excursion PowerStroke Diesel.
  • Model years 1999.5 - 2003 7.3L PowerStroke engine.
  • A Garrett exclusive ball bearing cartridge for unbeatable response, efficiency, and durability. Elimination of the thrust bearing eliminates Failures at elevated boost levels.
  • The 88mm GT compressor wheel provides 33% more flow than the stock 80mm wheel. Ported shroud housing improves compressor flow range for surge control
  • 1.00 A/R turbine housing for free flowing exhaust with reduced back pressure and up to 200° F reduction in exhaust gas temperature.
  • Maximum recommended boost level is 40psi.
  • Turbine housing options.

Note: Kit Contains, the turbo, 4-inch Inlet Hose, V-Band Clamp, Oil inlet o-ring and Oil outlet o-ring.

Installation Instructions (457 Kb)

GTP38R COMPRESSOR TURBINE
Turbo CHRA Inducer Exducer Trim A/R Wh Dia Trim A/R Type
739619-0004 739625-0001 65.9 mm 88.0 mm 56 1.00 76.2 mm 79 1.00 Wastegated
TURBINE HOUSING OPTIONS
Part Number A/R Type
451272-0015 0.84 Wastegated
710023-0004 1.00 Wastegated
700213-0005 1.15 Free Float

ACCESORIES

COMPRESSOR HOUSING

Inlet
Part Number Description
not available Coupler 4"
not available T-bolt band
Outlet
Part Number Description
not available V Clamp
not available Flange

TURBINE HOUSING

Inlet
Part Number Description
not available V Clamp
Outlet
Part Number Description
not available Gasket

BEARING HOUSING

Inlet
Part Number Description
not available O ring
Outlet
Part Number Description
not available O ring




Updated on July 03, 2011
