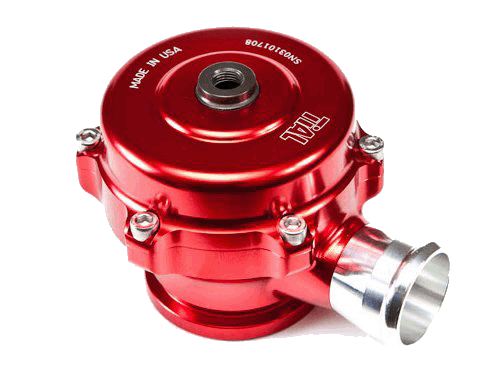

Blow-Off Q Valves

QR Blow-off Valve models ( 1" return fitting )
Part Number Pressure Color Adaptor
Bares p.s.i.
714346-0611 0.41 6.0 Red Aluminum
714346-0612 0.41 6.0 Red Mild steel
714346-0613 0.41 6.0 Red Stainless steel
714346-0621 0.41 6.0 Blue Aluminum
714346-0622 0.41 6.0 Blue Mild steel
714346-0623 0.41 6.0 Blue Stainless steel
714346-0631 0.41 6.0 Black Aluminum
714346-0632 0.41 6.0 Black Mild steel
714346-0633 0.41 6.0 Black Stainless steel
714346-0641 0.41 6.0 Purple Aluminum
714346-0642 0.41 6.0 Purple Mild steel
714346-0643 0.41 6.0 Purple Stainless steel
714346-0651 0.41 6.0 Silver Aluminum
714346-0652 0.41 6.0 Silver Mild steel
714346-0653 0.41 6.0 Silver Stainless steel
714346-0811 0.55 8.0 Red Aluminum
714346-0812 0.55 8.0 Red Mild steel
714346-0813 0.55 8.0 Red Stainless steel
714346-0821 0.55 8.0 Blue Aluminum
714346-0822 0.55 8.0 Blue Mild steel
714346-0823 0.55 8.0 Blue Stainless steel
714346-0831 0.55 8.0 Black Aluminum
714346-0832 0.55 8.0 Black Mild steel
714346-0833 0.55 8.0 Black Stainless steel
714346-0841 0.55 8.0 Purple Aluminum
714346-0842 0.55 8.0 Purple Mild steel
714346-0843 0.55 8.0 Purple Stainless steel
714346-0851 0.55 8.0 Silver Aluminum
714346-0852 0.55 8.0 Silver Mild steel
714346-0853 0.55 8.0 Silver Stainless steel
714346-1011 0.69 10.0 Red Aluminum
714346-1012 0.69 10.0 Red Mild steel
714346-1013 0.69 10.0 Red Stainless steel
714346-1021 0.69 10.0 Blue Aluminum
714346-1022 0.69 10.0 Blue Mild steel
714346-1023 0.69 10.0 Blue Stainless steel
714346-1031 0.69 10.0 Black Aluminum
714346-1032 0.69 10.0 Black Mild steel
714346-1033 0.69 10.0 Black Stainless steel
714346-1041 0.69 10.0 Purple Aluminum
714346-1042 0.69 10.0 Purple Mild steel
714346-1043 0.69 10.0 Purple Stainless steel
714346-1051 0.69 10.0 Silver Aluminum
714346-1052 0.69 10.0 Silver Mild steel
714346-1053 0.69 10.0 Silver Stainless steel
714346-1111 0.76 11.0 Red Aluminum
714346-1112 0.76 11.0 Red Mild steel
714346-1113 0.76 11.0 Red Stainless steel
714346-1121 0.76 11.0 Blue Aluminum
714346-1122 0.76 11.0 Blue Mild steel
714346-1123 0.76 11.0 Blue Stainless steel
714346-1131 0.76 11.0 Black Aluminum
714346-1132 0.76 11.0 Black Mild steel
714346-1133 0.76 11.0 Black Stainless steel
714346-1141 0.76 11.0 Purple Aluminum
714346-1142 0.76 11.0 Purple Mild steel
714346-1143 0.76 11.0 Purple Stainless steel
714346-1151 0.76 11.0 Silver Aluminum
714346-1152 0.76 11.0 Silver Mild steel
714346-1153 0.76 11.0 Silver Stainless steel
CODE EXPLANATION

example 714346-1112

  • The 6 first dígits are the part number of the valve. In this case it is 714346.
  • The 2nd digit after the dash means the open actuator pressure (aproximately). In this case it opens at 11 psi.
  • The 3rd digit is the color. 1 = Red, 2 = Blue, 3 = Black, 4 = Purple, 5 = Silver. In this case it is Red.
  • The 4th digit is the adaptor type include with the valve. 1 = Aluminum, 2 = Mild steel, 3 = Stainless steel. In this case it is Mild steel.
